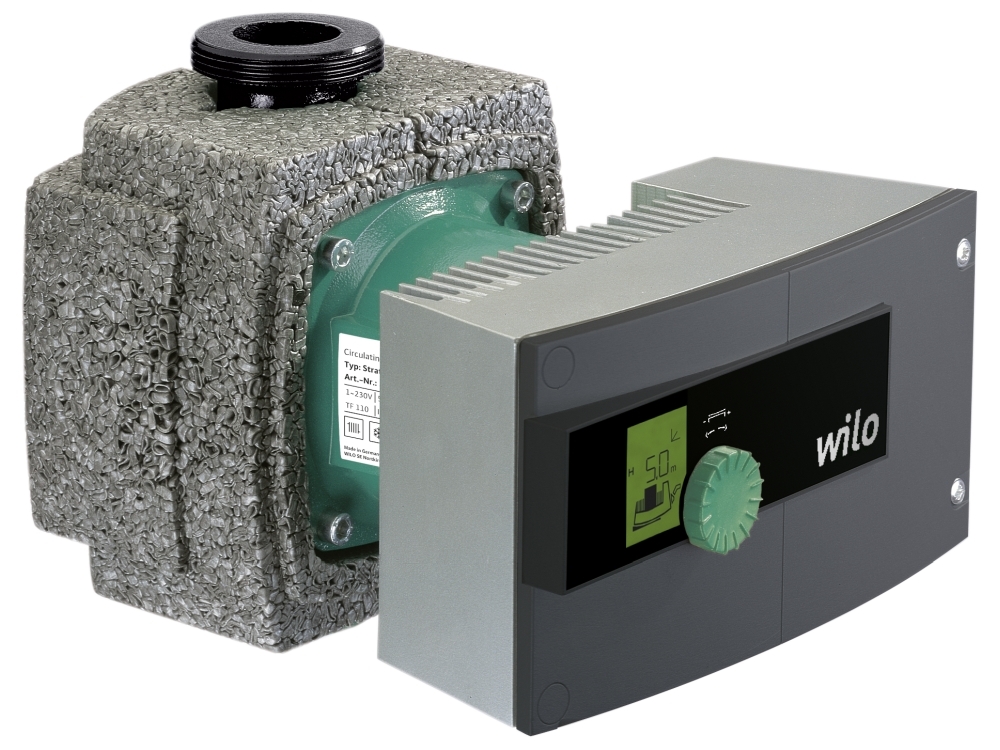

WILO 2104225 STRATOS 25/1-4 PN6/10 PUMP.
The Wilo Stratos 25/1-4 Pump is a high efficiency glandless pump which is controlled electronically. The pump has an EC motor with automatic power adjustment and can be extended using optional IF modules for building automation and dual pump management.
The Stratos pump can be used for a range of HVAC applications such as all types of hot water heating systems, air conditioning systems and closed cooling circuits.
Pump Specification
- Max. volume flow (Q): 5.5 m3/h
- Max. delivery head (H): 4m
- Energy Efficiency Index (EEI): 0.20
- Max. operating pressure (PN): 10 bar
- Pipe connection: G 1½
- Port-to-port length: 180mm
Motor Data
- Mains connection: 1~230 V, 50/60 Hz, 0.35 A
- Insulation class: F
- Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
- Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
- Electromagnetic compatibility: EN 61000-6-2
Pump Material
- Shaft: Stainless steel (1.4028, X30Cr13)
- Pump housing: Cast Iron (5.1301, EN-GJL-250)
- Impeller: Plastic (PPS-GF40)
- Bearing: Carbon, metal impregnated
The WILO 2104225 STRATOS 25/1-4 PN6/10 PUMP is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
