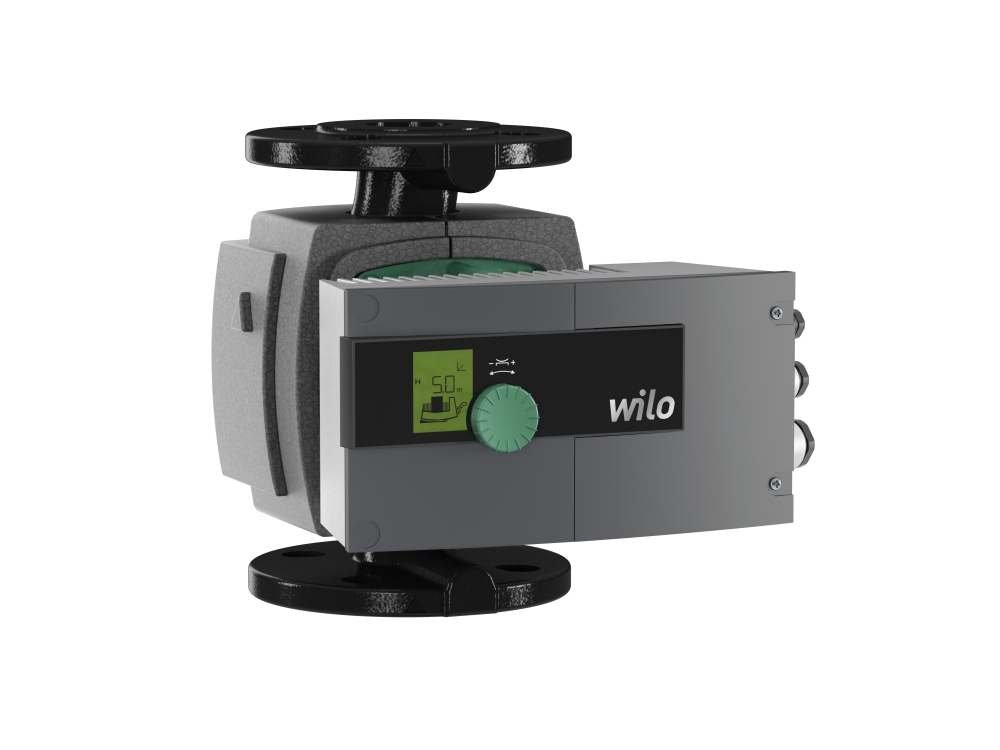

WILO 2090455 STRATOS 40/1-12 PN6/10 PUMP.
The Wilo Stratos 40/1-12 Pump is an electronically controlled glandless circulation pump which is used for a range of HVAC applications, such as hot-water heating systems, air conditioning systems, closed cooling circuits and industrial circulation systems.
The Stratos pump can be extended for use with building automation or dual pump management using optional IF-modules. The pumps display provides information about the pumps operating status, control mode, pressure or rotation speed setpoint as well as faults and alarm signals.
Pump Specification
- Max. volume flow (Q): 22.6 m3/h
- Max. delivery head (H): 12m
- Energy Efficiency Index (EEI): 0.20
- Max. operating pressure (PN): 6/10 bar
- Pipe connection: DN 40
- Port-to-port length: 250mm
Motor Data
- Mains connection: 1~230 V, 50/60 Hz, 2.40 A
- Insulation class: F
- Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
- Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
- Electromagnetic compatibility: EN 61000-6-2
Pump Material
- Shaft: Stainless steel (1.4028, X30Cr13)
- Pump housing: Cast Iron (5.1301, EN-GJL-250)
- Impeller: Plastic (PPS-GF40)
- Bearing: Carbon, metal impregnated
The WILO 2090455 STRATOS 40/1-12 PN6/10 PUMP is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
